EAST.Store

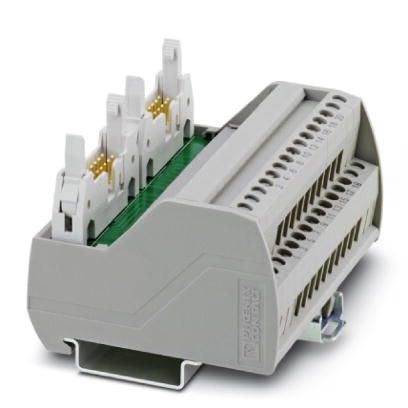

PHOENIX VIP-2/SC/2FLK14
PHOENIX VIP-2/SC/2FLK14
Regular price
€80,00 EUR
Regular price
Sale price
€80,00 EUR
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Item ID |
PHOENIX 2315230 |
Manufacturer Part # |
2315230 |
AHC Part # |
2461234 |
Unit Size |
1 |
Brand |
Phoenix Contact
|
Tech Specifications
| Width | 80.6 mm |
| Height | 65.5 mm |
| Depth | 56 mm |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Max. permissible operating voltage | 25 V AC |
| Max. permissible operating voltage | 60 V DC |
| Max. perm. current (per branch) | 1 A |
| Number of positions | 14 |
| Status display | No |
| Mounting position | any |
| Connection name | Field level |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M 3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Connection name | Controller level |
| Connection method | IDC/FLK pin strip |
| Number of connections | 2 |
| Number of positions | 14 |
| Pitch | 2.54 mm |
